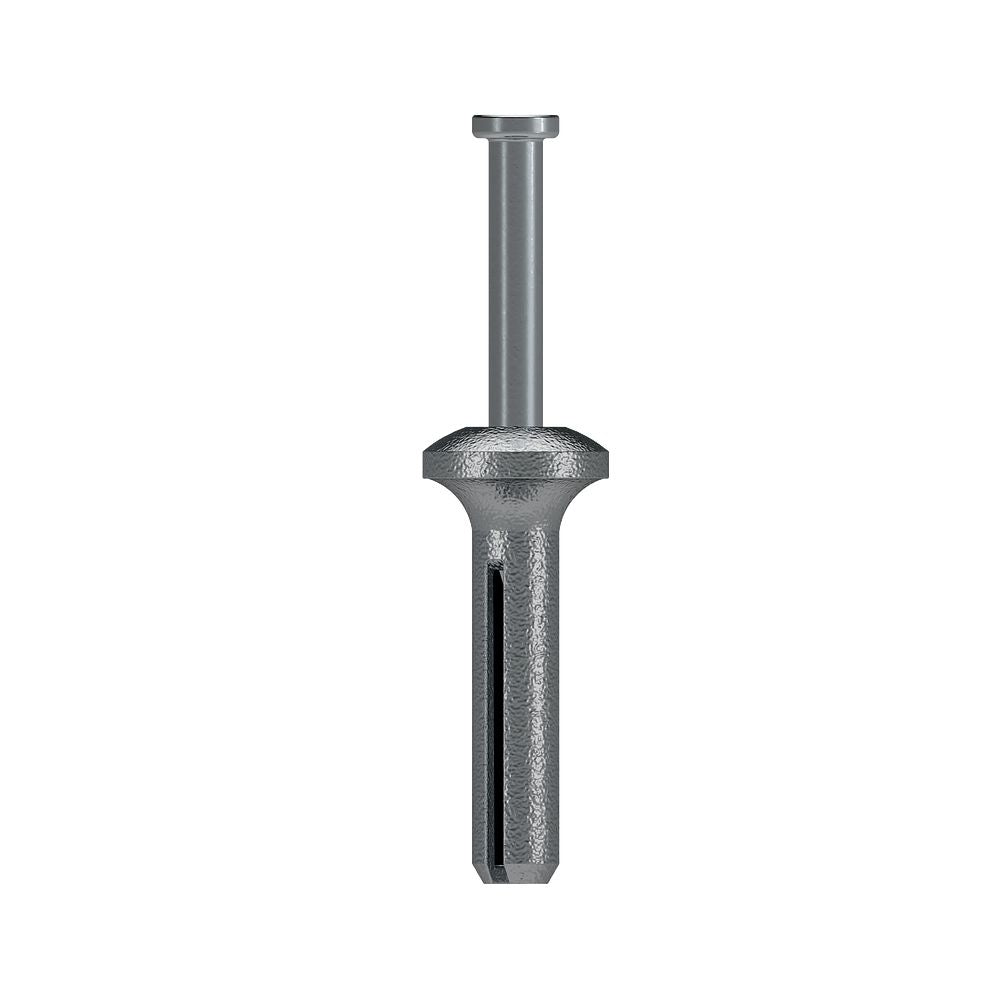

Simpson Strong-Tie Zinc Nailon™ Pin Drive Anchor
Simpson Strong-Tie
Item Details
Zinc Nailon anchors are low-cost, easy-to-install anchors for applications under static loads.
Key Features
- Available with carbon and stainless-steel pins
- Pin and head configuration designed to make anchor tamper-resistant
Material
- Body — Die-cast Zamac 3 alloy
- Pin — Carbon steel; Type 304 stainless steel
Installation
- Drill a hole in base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to specified embedment depth, plus 1/4" for pin extension, and blow hole clean using compressed air. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling.
- Position fixture and insert Nailon anchor.
- Tap with hammer until flush with fixture, then drive pin until flush with top of head.
